CPU Profiler

Pro Feature

Note

The content of this page is adjusted based on your editor of choice. Your editor selection can be changed using the dropdown in the top right corner of the page.

Quokka’s CPU Profiler allows you to quickly record the CPU usage profile of your code to analyze its runtime performance.

To record and view the CPU profile, you may use the Profile button, or run the Quokka.js: Profile command.

Before the profile is displayed, you may choose where to display it: in Quokka Chrome Dev Tools or directly in VS Code.

VS Code embedded view

If you select to open the CPU profile in VS Code, then it will be displayed with VS Code’s built-in CPU profile table extension (and optional Flame Chart extension).

To record and view CPU profile, you may run the Profile action, or the Profile intention action. The recorded CPU profile will be automatically displayed in Chrome Dev Tools once it is ready.

To record and view CPU profile, you may run the Profile command. The recorded CPU profile will be automatically displayed in Chrome Dev Tools once it is ready.

Quokka Chrome DevTools

If you select to open the CPU profile in Quokka Chrome DevTools, three views for analyzing the results are provided once the DevTools app is opened. Each view gives you a different perspective on the executed functions:

After recording CPU profile, Quokka Chrome DevTools will be opened and the CPU profile will be displayed with three views for analyzing the results. Each view gives you a different perspective on the activities:

• Chart view (opened by default),
• Tree (Top Down) view,
• Heavy (Bottom-Up) view.

You may search for a specific function, file, or other text in the DevTool views using Cmd + F or Ctrl + F. In addition, any links that are provided that reference your project files will be opened in your editor when you click them.

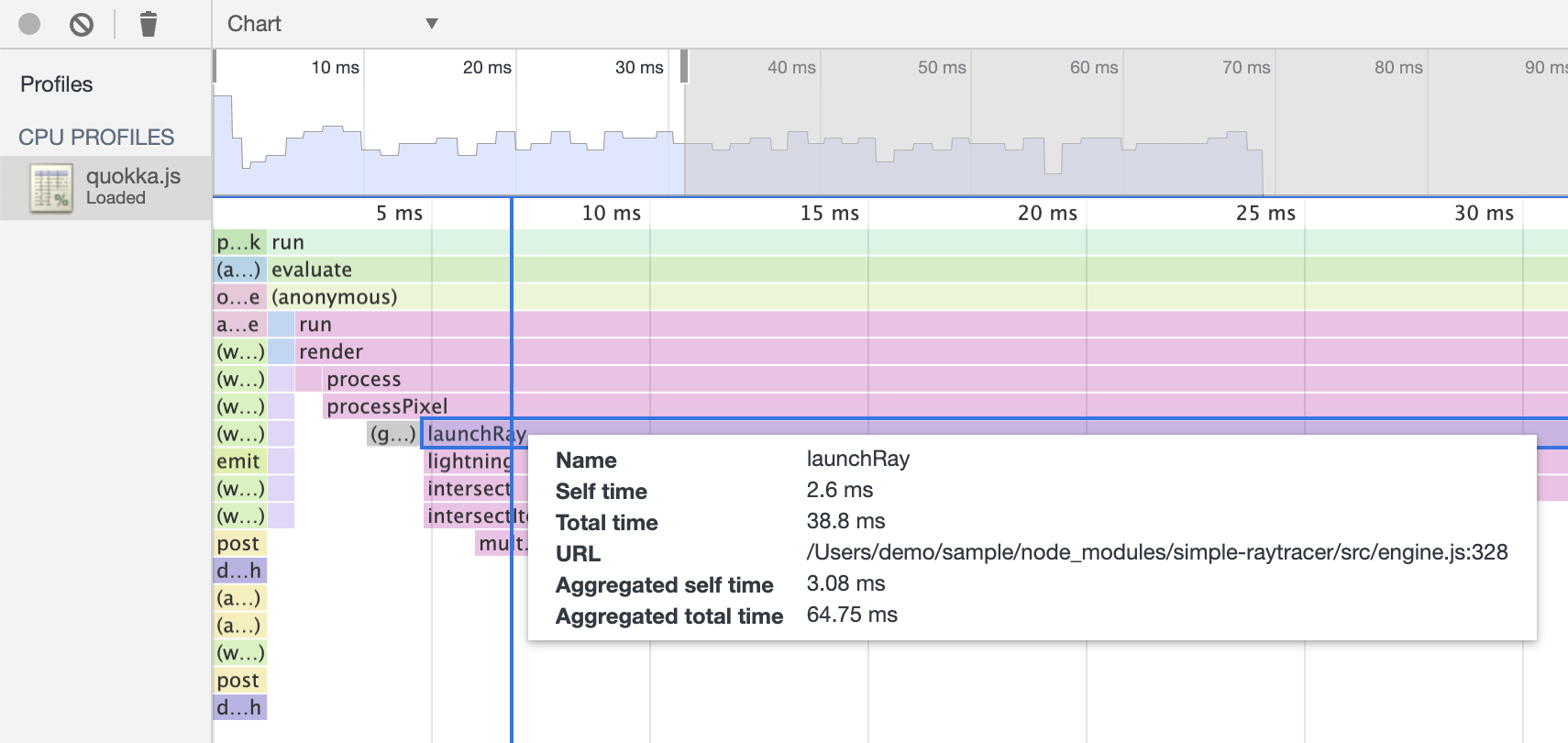

The Chart view represents main thread activity with a flame chart. The x-axis represents the recording over time. The y-axis represents the call stack. The functions on top invoke the functions below.

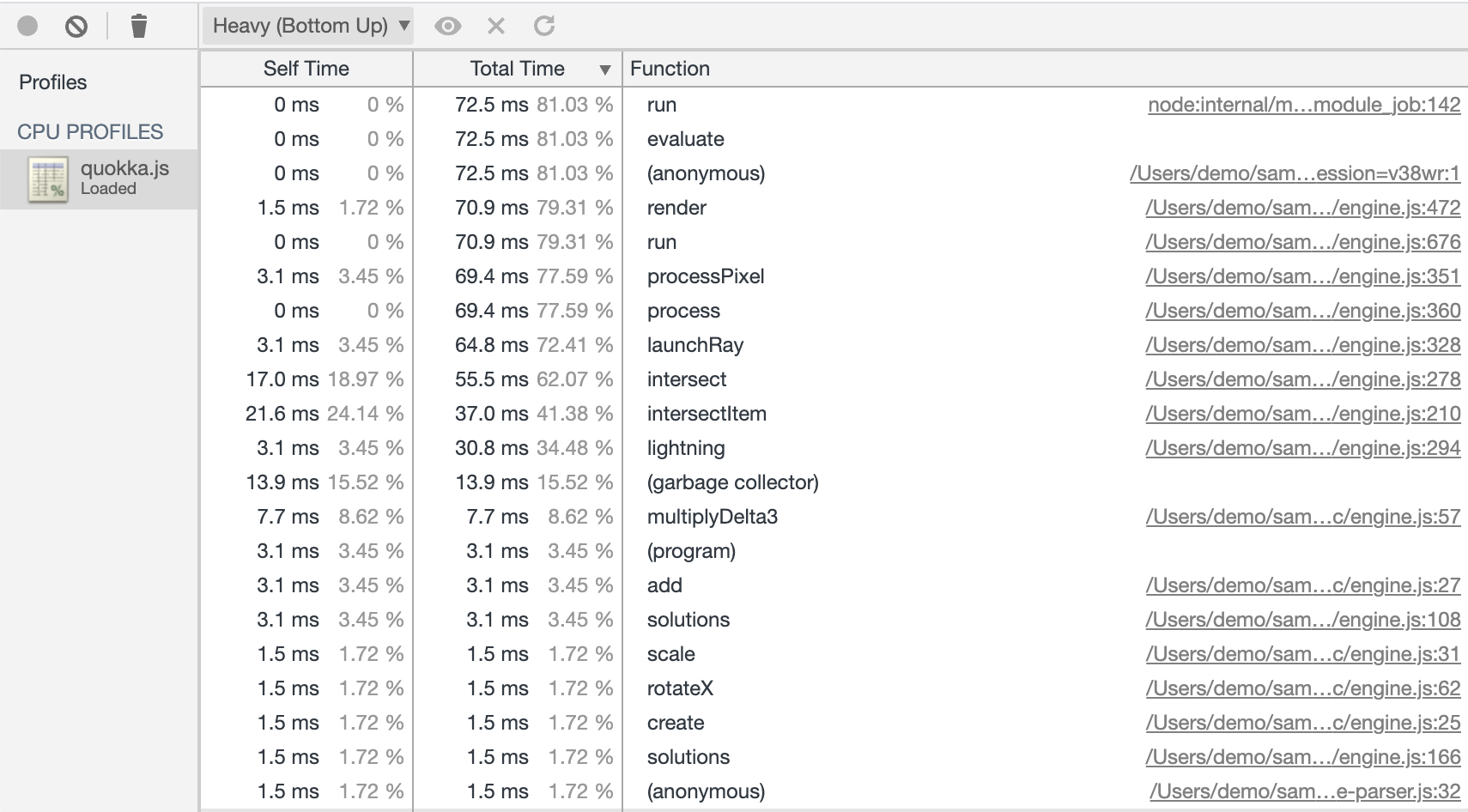

You may use the Tree (Top Down) tab to view which functions cause the most work, or the Heavy (Bottom-Up) tab to view which functions directly took up the most time in aggregate.

In all the views Self Time represents the time directly spent in that function. Total Time represents the time spent in that function or any of its children. You may click Self Time, Total Time, or Function to sort the table by that column.
